Exam

Last updated: 2026-03-04 01:47:16

Instructions

  • The exam is composed of 10 multiple-choice questions
  • There is exactly one right answer to each question
  • Exam duration is 2 hours
  • Permitted exam equipment: a calculator
  • The exam takes place in a regular class, with pen and paper (not in front of a computer!)
  • Each question contains a short code section. The code section is not identical to the ones that appeared in the course materials, but they combine functions and methods which were learned. You need to choose the right code output out of 4 options.

Material for exam

The material for the exam is chapters 2–11:

The following topics from the above chapters will not appear in the exam:

  • Geocoding
  • Reprojection
  • Rasters (package rasterio)

Examples of exam questions

import matplotlib.pyplot as plt
import networkx as nx
import shapely

Question 1

What is the result of the following code section?

H = nx.Graph()
H.add_nodes_from([1, 2])
nx.number_connected_components(H)

  1. 1

  2. 2

  3. 3

  4. 4

Question 2

What is the result of the following code section?

G = nx.Graph()
G.is_directed()

  1. True

  2. False

  3. 0

  4. 1

Question 3

What is the result of the following code section?

G = nx.Graph()
G.add_nodes_from([1,2,3,4])
for i in G.nodes:
    G.add_edge(1, i)
G.degree[1]

  1. 1

  2. 2

  3. 3

  4. 4

Question 4

What is the result of the following code section?

G = nx.Graph()
G.add_node(1)
G.nodes[1]['items'] = ['1','2','3']
type(G.nodes[1]['items'][1])

  1. int

  2. dict

  3. str

  4. list

Question 5

What is the result of the following code section?

G = nx.DiGraph()
G.add_nodes_from(['a', 'b', 'c'])
G.add_edge('a', 'b')
G.add_edge('b', 'c')
G.add_edge('c', 'a')
G.edges['a', 'b']['weight'] = 1
G.edges['b', 'c']['weight'] = 5
G.edges['c', 'a']['weight'] = 10
nx.path_weight(G, ['a','b','c','a'], weight='weight')

  1. 1

  2. 2

  3. 3

  4. 4

For questions 6-10, we define a network G, as follows:

# Network
G = nx.DiGraph()
G.add_nodes_from(list(range(1, 7)))
G.nodes[1]['geometry'] = shapely.Point(8, 15)
G.nodes[2]['geometry'] = shapely.Point(0, 12)
G.nodes[3]['geometry'] = shapely.Point(15, 10)
G.nodes[4]['geometry'] = shapely.Point(20, 10)
G.nodes[5]['geometry'] = shapely.Point(0, 0)
G.nodes[6]['geometry'] = shapely.Point(15, 0)
G.nodes[6]['geometry'] = shapely.Point(15, 0)
G.add_edge(1, 4)
G.add_edge(2, 5)
G.add_edge(3, 2)
G.add_edge(4, 6)
G.add_edge(5, 6)
G.add_edge(5, 3)
G.add_edge(6, 3)
G.add_edge(5, 2)
G.add_edge(2, 3)
for u,v in G.edges:
    line = shapely.LineString([G.nodes[u]['geometry'], G.nodes[v]['geometry']])
    G.edges[u, v]['geometry'] = line
    G.edges[u, v]['length'] = round(line.length, 1)

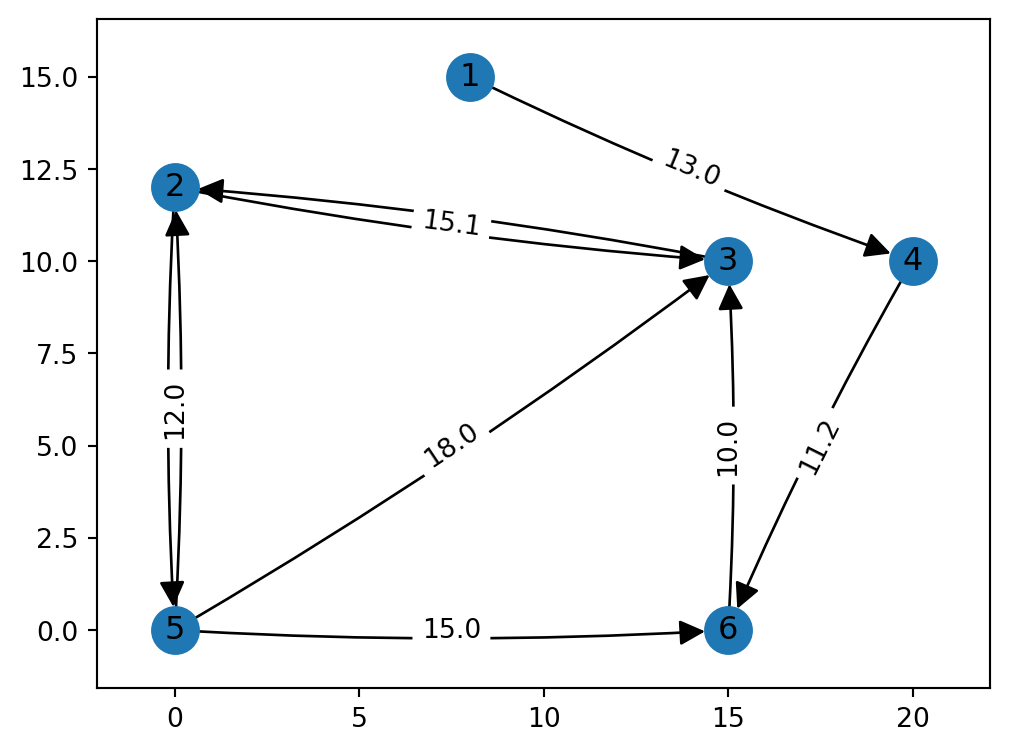

# Plot
pos = {i: [G.nodes[i]['geometry'].x, G.nodes[i]['geometry'].y] for i in G.nodes}
edge_labels = nx.get_edge_attributes(G, 'length')
fig, ax = plt.subplots()
nx.draw(G, with_labels=True, pos=pos, arrowsize=20, connectionstyle='arc3,rad=0.03')
plt.axis('on')
ax.set_aspect('equal')
nx.draw_networkx_edge_labels(G, pos, edge_labels)
ax.tick_params(left=True, bottom=True, labelleft=True, labelbottom=True);

Question 6

What is the result of the following code section?

G.degree[6]

  1. 1

  2. 2

  3. 3

  4. 4

Question 7

What is the result of the following code section?

G.edges[5,2]['length'] = G.edges[5,2]['length'] / 10
x = nx.shortest_path(G, 5, 3, weight='length')
G.edges[5,2]['length'] = G.edges[5,2]['length'] * 10
print(x)

  1. [6]

  2. [5, 6, 3]

  3. [5, 3]

  4. [5, 2, 3]

Question 8

What is the result of the following code section?

H = nx.Graph()
H.add_nodes_from([1, 2, 3])
nx.number_connected_components(H)

  1. 1

  2. 2

  3. 3

  4. 4

Question 9

What is the result of the following code section?

def check_node(node):
    return G.nodes[node]['geometry'].x > 5
nx.subgraph_view(G, filter_node=check_node).number_of_nodes()

  1. 1

  2. 2

  3. 3

  4. 4

Question 10

What is the result of the following code section?

H = nx.DiGraph()
H.add_nodes_from([1,2,3])
for i in [1,2]:
    for j in [1, 2]:
        if i != j:
            H.add_edge(i, j)
H.number_of_edges()

  1. 1

  2. 2

  3. 3

  4. 4
